ITEM SHOWN:

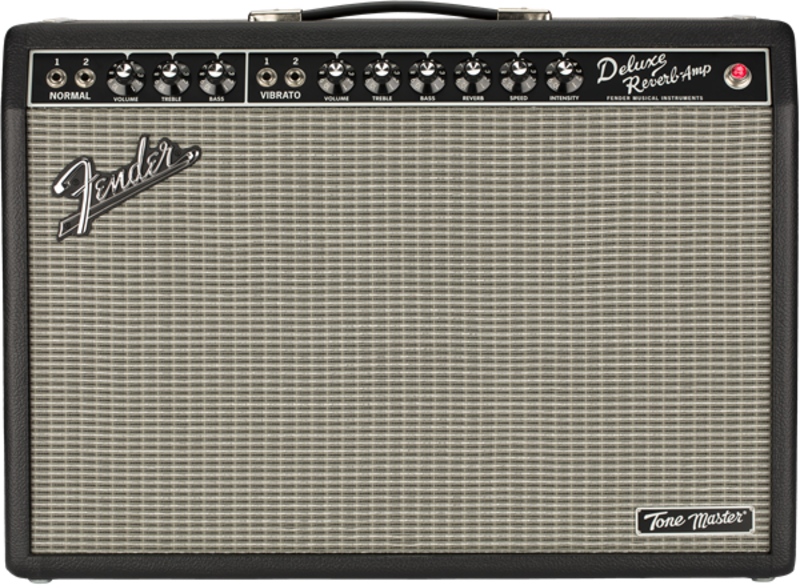

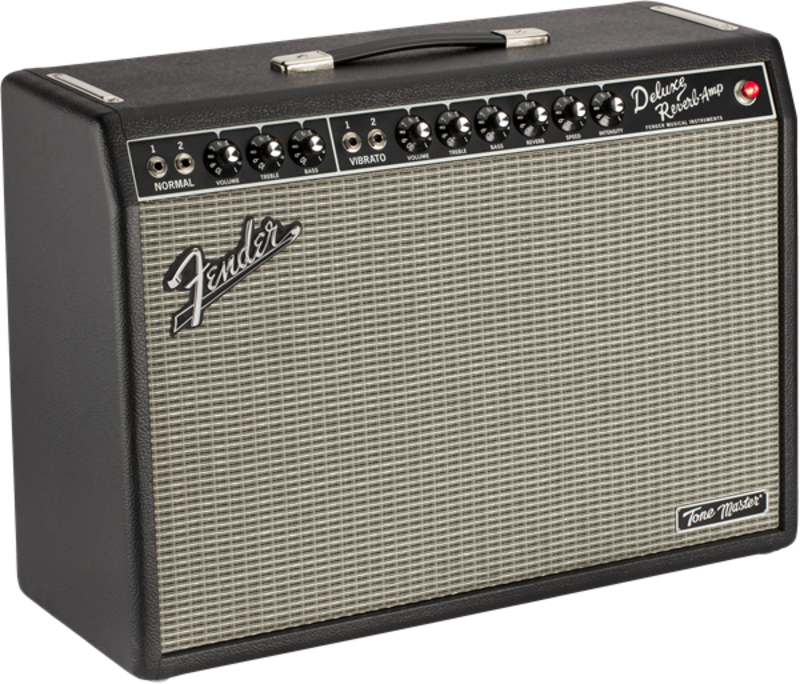

Tone Master® Deluxe Reverb®-Amp, 120V
MODEL #:
2274100000
UPC #:
885978072200

In a bold Fender first, the Tone Master Deluxe Reverb amplifier uses massive digital processing power to achieve a single remarkable sonic feat: faithfully modeling the circuitry and 22-watt power output of an original Deluxe tube amp. Using a high-performance 100-watt digital power amp to achieve the headroom and dynamic range of a real vintage Deluxe tube amp, paired with the pronounced sparkle and clarity of a single Jensen® N-12K neodymium speaker and a resonant pine cabinet, the result is tubeless Deluxe Reverb tone, volume and dynamics virtually indistinguishable from the all-tube original. And with all these features, the Tone Master Deluxe Reverb is in fact about only half the weight of an all-tube Deluxe.

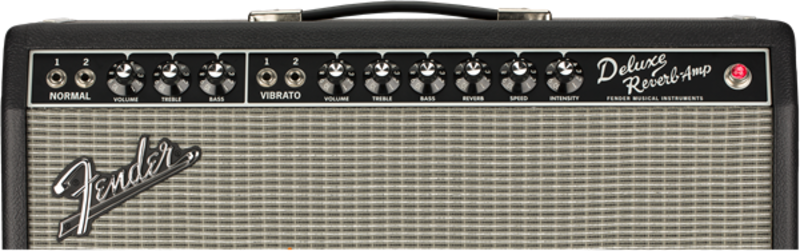

Front panel features give guitarists a playing experience identical to the tube version, including Fender's world-standard reverb and tremolo effects. Additional rear-panel features deliver modern convenience and flexibility - including an output power selector for full power and five attenuated settings, balanced XLR line output with impulse response (IR) cabinet simulations, mute switch for silent stage or recording use, USB port for firmware upgrades, and more.

FEATURES
Jensen N-12K neodymium speaker
Normal and Vibrato channels, each with two inputs
Rear-panel output power selector for full power and five attenuated settings
Balanced XLR line output with impulse response (IR) cabinet simulations, level control, and ground switch
Lightweight, resonant pine cabinet
Power jewel illuminates in different colors for normal operation, warmup, and mute/silent mode
USB port for firmware upgrades
Universal worldwide 100V - 240V operation
Cover and two-button footswitch included

General
SeriesTone Master®
ColorBlack
Amplifier TypeDigital
Country Of OriginCN

Electronics
Control PanelNormal: Volume, Treble, Bass; Vibrato: Volume, Treble, Bass, Reverb, Speed, Intensity
InputsFour - (1/4", Two Normal and Two Vibrato)
Line OutOne - (Balanced XLR with Ground Lift and Level Control)
ChannelsTwo - (Normal and Vibrato)
EffectsReverb, Tremolo
ConnectivityUSB For Firmware Updates
Connection Type1/4"
Voltage120V
Wattage100W into 8Ω (Simulates 22W Tube Amp Performance)

Hardware
Control KnobsVintage-Style Skirted Black Plastic
Amplifier CoveringBlack Textured Vinyl
Cabinet MaterialLightweight Solid Pine
Grille ClothSilver
HandleMolded Plastic Strap with Nickel-Plated Caps
Amplifier JewelRed (Power), Red/Amber (Warmup), Amber (Mute)
Front PanelBlack
Reverb TankDSP
Reverb Tank TypeDSP

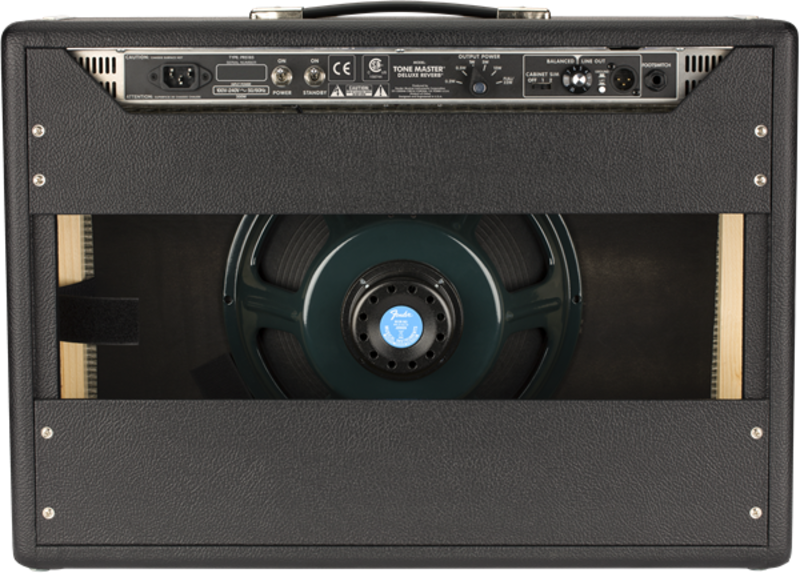

Rear Control PanelPower, Mute, Output Power Selector, Cabinet Simulator, Line Out Level, Ground Lift
sku-image

Speakers

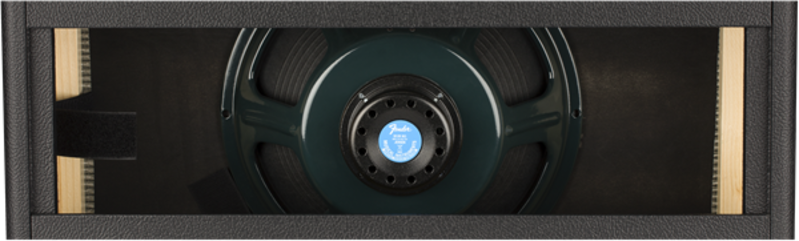

SpeakersOne - 12" Jensen® N-12K Neo
Total Impedance8 ohms

Measurements
Dimensions12.90x22.50x27.50 IN
Shipping Weight28.80 LB
Product Depth9.28" (23.6 cm)
Product Height17" (43.2 cm)
Product Width24.1" (61.2 cm)
Shipping Length27.50 IN
Shipping Height12.90 IN
Shipping Width22.50 IN

Accessories

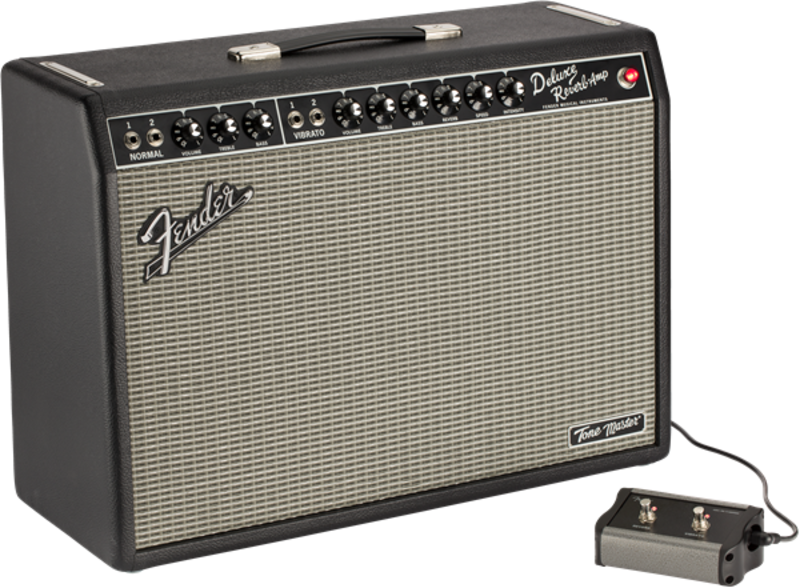

Footswitch2-Button Footswitch Included

Miscellaneous
DisclaimerWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Commodity Code8518.40.2000
