Item shown:

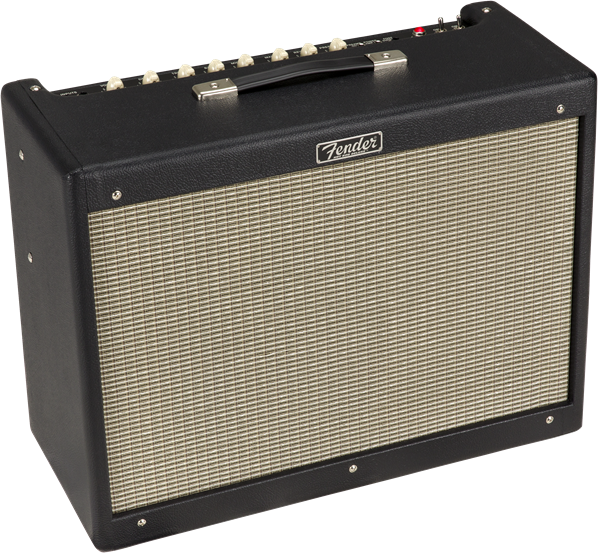

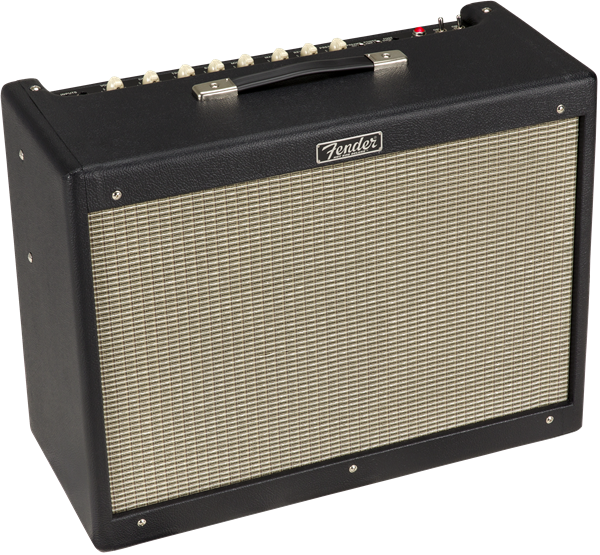

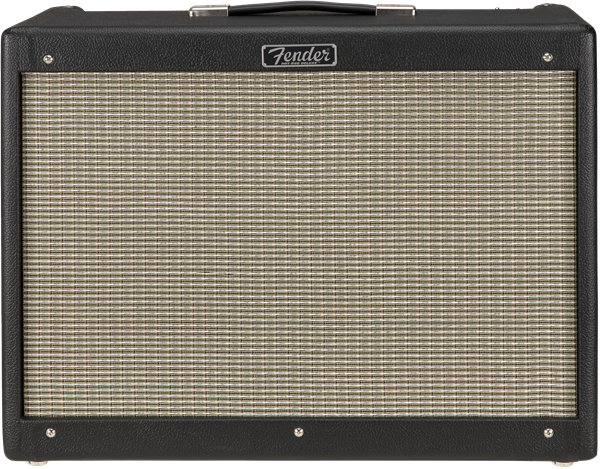

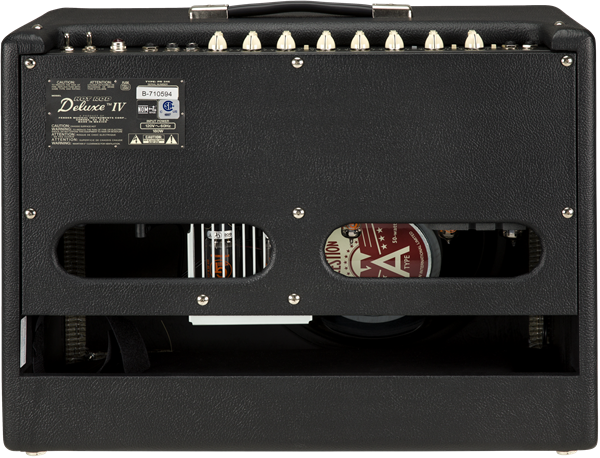

Hot Rod Deluxe™ IV, Black, 120V
Model #:
2231200000
UPC #:
885978878116

An updated version of the legendary amplifier that's been the heart of many guitarists' rigs, the Hot Rod Deluxe IV features modified preamp circuitry, smoother-sounding spring reverb and updated aesthetics that any player is sure to appreciate. A supercharged amp decked out with player-requested features, this scorching 40-watt 1x12" combo is ideal for guitarists who need hot-rodded power with performance to spare.

The Hot Rod Deluxe IV includes a 12" Celestion® A-Type speaker for well-balanced output with smooth highs, laid-back midrange and full, round lows. The modified preamp circuitry improves overdriven note definition, so you'll have articulate sound no matter how hard you push this amp. The onboard spring reverb has been modified to add smoothness, so you still get rich, shimmering tone, no matter how much reverb you use. The updated aesthetics include a lightweight pine cabinet, improved control panel texture and graphics, ivory pointer knobs, steel-reinforced strap handle and lightly-aged silver grille cloth, giving it the unmistakable look and vibe you can only get from a Fender amp. Reliable, flexible and pedal-friendly, the Hot Rod Deluxe IV is an ideal addition to any electric guitarist's amp collection.

Features
40 watts; Normal, Drive, and More Drive channels
Celestion 12" A-Type speaker
Modified preamp circuitry for increased overdriven note definition
Spring reverb modified for improved smoothness
Lightweight pine cabinet
Includes 2-button footswitch and cover

General
SeriesHot Rod
ColorBlack
Amplifier TypeTube
Country Of OriginMX

Electronics

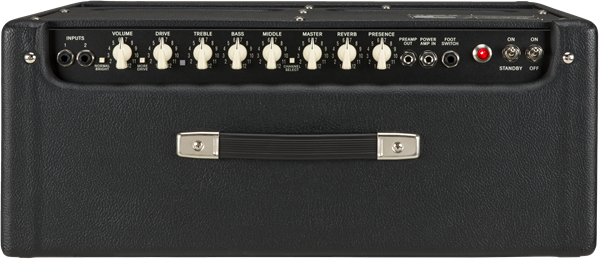

ControlsPresence, Reverb, Master Volume, Middle, Bass, Treble, Drive Select Switch, Drive Volume, Bright Switch
Control PanelPresence, Reverb, Master Volume, Middle, Bass, Treble, Drive Select Switch, Drive Volume, Bright Switch
InputsTwo - (1/4", Input 2 operates at -6dB)
ChannelsThree - Selectable (Normal, Drive and More Drive)
EffectsReverb
Effects Loop1/4" - (Preamp Out, Power Amp In)
Connection Type1/4"
Voltage120V
Wattage40 Watts

Hardware
Control KnobsChicken-Head Style Pointer - Ivory
Amplifier CoveringBlack Textured Vinyl
Cabinet MaterialLightweight Pine
Grille ClothLightly-Aged Silver
HandleMolded Plastic Strap with Nickel-Plated Caps
Amplifier JewelRed Jewel
Speaker JackTwo 1/4" Parallel (Internal and External)
Front PanelBlack

Speakers
SpeakersOne - 12" Celestion® A-Type
Total Impedance8 ohms

Tubes
Power Tubes2 x 6L6
Preamp Tubes3 x 12AX7
RectifierSolid State

Measurements
Dimensions12.90x21.60x26.00 IN
Shipping Weight51.05 LB
Product Depth10.4375" (265 mm)
Product Height18.75" (47.6 cm)
Product Width23.5" (59.7 cm)
Power Tubes2 x 6L6
Shipping Length26.00 IN
Shipping Height12.90 IN
Shipping Width21.60 IN

Accessories
Included AccessoriesIncludes two-button footswitch and fitted cover
Footswitch2-Button 3-Function (Channel Select, Drive/More Drive), P/N: 0994062000 (Included)

Miscellaneous
DisclaimerWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Commodity Code8518.40.2000
Power CableNon-IEC
